IGUAZU II SERIES
Advanced Technology Color Sortin Equipment
Iguazu II - Penta II - Iguazu II IR



Speed and accuracy that only innovative technology can produce.


From lighting systems to ejector design, from electronics to metallurgy, the Iguazu II series exemplifies the highest standards and newest technologies in optical sorters. All i-IQ sorters are self-adjusting, fully automatic and easy to operate. All Delta sorters are self-adjusting, fully automatic and easy to operate. Plus, Iguazu II sorters have been designed to pack more power into a smaller space. Delta Technology's engineers have created workhorse sorters that will benefit virtually any sorting application. Rugged and reliable, from a value standpoint, no other sorters compare to Iguazu II.



Modular feeding chutes with self-contained electronics provide value and longevity.

Delta's Iguazu II series are th only optical sorters that can be expanded with additional feeding chutes as your needs increase. You can start with two chutes and expand to up to seven chutes on the same sorter, reducing capital expense and reducing the time for you to add additional capacity. In addition, since each chute can be operated as an independent unit, you can resort the rejects on the same machine.



Exclusive feeding concept reduces product changeover time.

Unlike other sorters that require changing the feed trays to accommodate different size product, Delta's engineers have designed a universal feed tray that can accept products of varying sizes. There is no maintenance time involved in changing trays when you switch from sorting one product to another. In many operatins, this eliminates the need for additional sorters.



Ejector valves machined for longer life.

The ejectors, which operate at 1,000 cycles/.sec., are machined to higher tolerances and built with higher quality materials than typical ejector valves. In addition, Delta's engineers have created a design that eliminates much of the efector's internal wear and tear from repetitive action. All of this results in significantly longer ejector life, more precise sorting and less maintenance downtime.

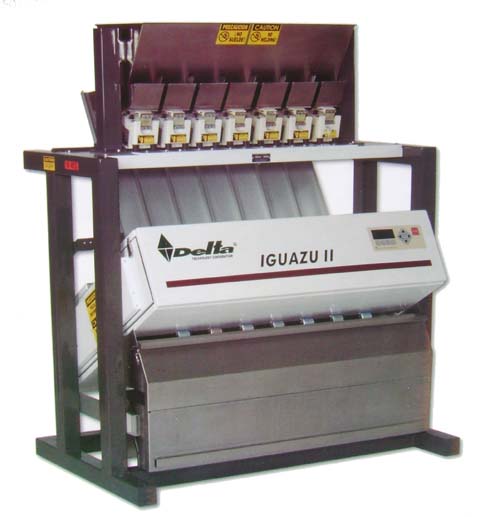

Iguazu II

  • Up to seven chutes, 16 ejectors/chute.
  • High-resolution monochromatic sensors allow the recognition of very small defects.
  • May be converted to IR.



Penta II

  • Up to seven chutes, 16 ejectors/chute.
  • Tri-color camera employs CMOS (complementary metal oxide semi-conductor) technology, which uses less power and amaller equipment than conventional RGB cameras.
  • Only gravity feed, high production trichromatic sorter in the industry.


Iguazu II IR

  • Up to six chutes, 16 ejectors/chute.
  • Low energy infrared light source for foreign material recognition.
  • High-resolution IR sensor allows the rcognition of very small defects.

    Iguazu II IR sorters use tubular incandescrent lighting in al way that has been patented by Delta Technology.
    Tubular incandescents
    have longer life, use significantly less power, are much cooler and are much easier to replace.






TECHNICAL DATA
Electrical 110 VAC or 220 VAC,
60 or 50 Hz/single phase power
1.7 KVA input power, approx. 1.35 KW

Air 10 CFM @ 100 PSI (5 Lts/Sec @ 7 Bar) per tray
60 CFM @ 100 PSI (30 Lts/Sec @ 7 Bar) 7 Rays

Operating
Temperature

 40 - 90 F (5 0 33 C)
Weight 1400 Lbs (635 Kg)
Dimension Height 68 Inches (1715 mm)
Width 58 Inches (1470 mm)
Depth 45 Inches (1130 mm)
