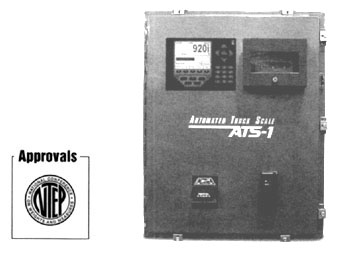

LINE VOLTAGES:
115 or 230 VAC, high pot test
FREQUENCY:
50 or 60 Hz
POWER CONSUMPTION:
340 mA, maximum @ 115 VAC (26 W)
240 mA @ 230 VAC (26 W)
FUSING:
115 VAC 2 x 400 mA TR5 subminiature
fuses Wickman Time-Lag 19374 Series.
UL Listed, CSA Certified and Approved
230 VAC/North American: 2 x 315 mA
TR5 subminiature fuses Wickman Time-
Lag 19372 Series. US Listed, Semco
and VD Approved
FULL SCALE INPUT SIGNAL:
Up to 770 mV
EXCITATION VOLTAGE:
10 + or - 0.5 VDC, 16 x 240 ohm or 32 x 700 ohm
load cells per A/C card
SENSE AMPLIFIER:
Differential amplifier with 4 and
6 wire sensing
ANALOG SIGNAL SENSITIVITY:
0.3 uV/graduation minimum @ 7.5 Hz
1.0 uV/graduation typical @ 120 Hz
4.0 uV/graduation typical @ 960 Hz
A/D SAMPLE RATE:
7.5 to 960 Hz, software selectable
INPUT IMPEDANCE:
more than 35 M ohm typical
8,000,000 counts/8,000,000 23 bit:
Up to 770 mV
WEIGHT DISPLAY RESOLUTION:
9,999,999
INPUT SENSITIVITY:
10 nV per internal count
| | SYSTEM LINEARITY:
± 0.01% full scale
ZERO STABILITY:
± 150 nV/ºC, maximum
SPAN STABILITY:
±3.5ppm/ºC, maximum
CALIBRATION METHOD:
Software, contents stored in flash memory
INPUT VOLTAGE DIFFERENTIAL:
±800mV referenced to earth ground
INPUT OVERLOAD:
Load cell signal lines ±10V continuous,
ESD protected
RFI/EMI PROTECTION:
Signal, excitation and sense lines protected
ANALOG OUTPUT:
Option card: 16 bit resolution DAC
Load resistance: 1.1K ohm minimum
Voltage output: 0 - 10 VDC
Current output: 0 - 20 mA
External loop resistance: 840 ohm maximum
MICROCOMPUTER:
Motorola ColdFire® MCFte07 main
processor @ 90 MHz
DIGITAL I/O:
Four I/O channels on CPU board; optional
24-channel I/O expansion boards available
DIGITAL FILTER:
Software selectable: 1-256, enhanced Rattletrap® hybrid digital filtering
SERIAL PORTS:
Four ports on CPU board support up to
115,200 bps; optional dual-channel serial
expansion boards available
Port 1: Full duplex RS-232
Port 2: RS-232 with CTS/RTS; PS/2
keyboard interface via DB-9 connector
Port 3: Full duplex RS-232, 20 mA output
Port 4: Full duplex RS-232, 2-wire
RS-485, 20 mA output
| | DISPLAY:
4.6" W x 3.4" H (116 W x 86 mm H),
320 x 240 pixel VGA Liquid Crystal
Display (LCD) module with adjustable
contrast, 75 Hz scan rate 26,000 cd/m2
brightness
KEYBOARD:
27-key membrane panel, PS/2 port for external keyboard connection
OPERATING TEMPERATURE:
Legal: 14°F to 104°F (10°C to +40°C)
Industrial: 14°F to 122°F
(-10°C to +50°C)
STORAGE TEMPERATURE:
14°F to 158°F (-10°C to +70°C)
HUMIDITY:
0 - 95% relative humidity
DIMENSIONS:
Indicator: 11.6" W x 9.1" H x 5.0" D
(294 W x 231 H x 127 mm D)
Indicator Box: 16.0" W x 20.0" H x 8.0" D
(406 W x t08 H x 203 mm D)
Printer Box: 18.5" W x 20.0" H x 12.0" D
(470 W x 508 H x 305 mm D)
RATING/MATERIAL:
NEMA 4XIP66, stainless steel
APPROVALS:
NTEP - certified per H-44 at 10,000
Divisions, Class III/IIIL,
CC# 01-088; Measurement Canada
pernding; CE marked; TUV;
UL & CUL listed
WARRANTY:
2-year limited warranty
*Please consult factory for drawings |
