Grading Sifter Bran Ball Separator
  SFN-602S / NS-602

yamamoto13-Grading-sfn620S-21new79.jpg - 33238 Bytes















yyamamoto Grading Sifter Bran Ball Separator ns602 -21new77.jpg - 10982 Bytes
SFN-602S

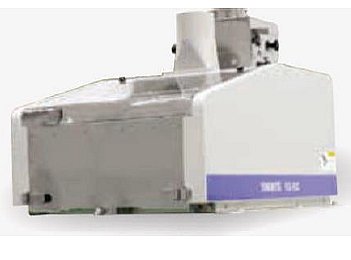

NS-602
 Features
  • Horizontal circular
    vibration method


    Screen (3 layers)
    SFN-602S

  • Horizontal back-
    and-force vibration
    method


    Bran Ball Separator
    NS-602·SFN-602S


At the inlet part, spread the white rice on the whole screen by circulation motion, and shifts to back-and-force motion through outlet. For removal of broken rice and bran, it is the most efficient and mild to rice. Adapt the mixture of circulation and linear motion and it contributes to less vibration.

yamamoto = At the inlet part, spread the white rice on the whole screen by circulation motion, and shifts to back-and-force motion through outlet - sfn-603 -21new86.jpg - 6131 Bytes
Remove the bran ball from white rice by smooth weak vibration.
yamamoto remove the bran ball grading modell sfn620S -21new85.jpg - 4840 Bytes yamamoto Segregate the bran ball by Bran Ball Separator model sfn-620S - 10141 Bytesyamamoto Sieve B: Segregate the small broken Sieve C: Segregate the bran model sfn-620S -21new83.jpg - 18813 Bytes
 DIMENSIONS
yamamoto dimensions Grading-model sfn620S -21new83.jpg - 31947 Bytes yamamoto dimensions Grading model NS-602 -21new83.jpg - 16005 Bytes
 Specifications:
Equipmemnt
Unit Rice Sifter
Bran Ball Separator
Model
-- SFN-602SNS-602
Size Length (mm) mm 1,464 772
Width (mm) mm 814 545
Height (mm) mm1,603 537
Net Weight (kg) kg265 50
Sieve
Sieve opening
mm Bran Ball Separator (NS0602) Scieve 3.5
mm Sieve B 1.94 (wire dia ϕ 0.6) 2 pieces
mm Sieve C 1.04 (wire dia ϕ 0.55)
Inclination angle * 3
Max Capacity (kg/h)
kg/h 6,000 6,000
Necessary Power (kW)
kW 0.6 (3 phase 200V) 0.2 (3 phase 200V)
*Above specification and dimensions may change due to Yamamoto's continuous development program.
We create future of agriculture
YAMAMOTO CO.,LTD.
